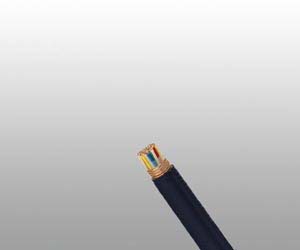

S9 IYXI(c) 60 V

Applications

These cables are flame retardant, low smoke and halogen free, used for indoor telecommunication.

Standards

  • IEC 60092-359
  • IEC 60332-1
  • IEC 60332-3-22
  • IEC 60754-1,2
  • IEC 61034-1,2
  • NEK 606:2004

Construction

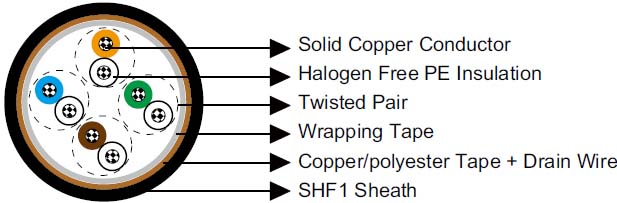

S9 IYXI(c) 60 V S9 IYXI(c) 60 V



Conductors Solid tinned copper, 0.5mm.
Insulation Halogen-free thermoplastic compound PE.
Twinning Colour coded cores twisted together. Pairs are cross-stranded to finished cable or 10 pair units. The units are stranded to 20 - 30 - 50 pair cables. 2 pair is stranded as a star quad.
Wrapping Polyester tape.
Collective Shielding The cable core is screened by copper backed polyester tape in contact with a 0.5mm solid tinned drain wire.
Sheath

Halogen-free thermoplastic compound, type SHF1, coloured grey.

Electrical Characteristics

Nominal Conductor Diameter mm 0.5
Maximum Resistant@20℃ Ω/km 95
Nominal Inductance@1KHz MH/km 0.61
Mutual Capacitance 1-pair cable nF/km 90
Mutual Capacitance 2-pair cable nF/km 80
Mutual Capacitance 4-pair and above cable nF/km 70
Operating Voltage V 60

Mechanical and Thermal Properties

Bending Radius 8×OD (during installation)
  6×OD (fixed installed)
Temperature Range -10℃ ~ +60℃

Dimensions and Weight

Construction No. of elements×No. of cores in element×Cross section(mm^2) Nominal Insulation Thickness (mm) Nominal Sheath Thickness (mm) Nominal Overall Diameter (mm) Nominal Weight (kg/km)
1×2×0.5 0.2 1.2 5.0 30
2×2×0.5 0.2 1.2 5.5 35
4×2×0.5 0.2 1.2 7.0 55
10×2×0.5 0.2 1.5 8.5 90
20×2×0.5 0.2 1.5 11.0 148
30×2×0.5 0.2 1.5 13.5 210
50×2×0.5 0.2 1.5 16.0 320
