0.6/1KV Limited Fire Hazard Rail Connection Cables to SE902

Application

The single core high performance power cables are used in safety signalling equipment rooms.

Standard

  • SE902
  • UNE 21123

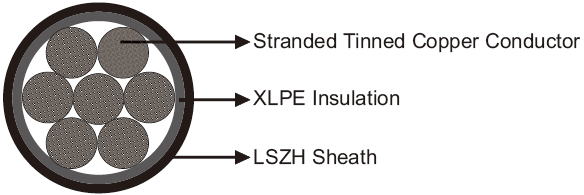

Cable Construction

0.6/1KV Limited Fire Hazard Rail Connection Cables Railway Cable
Conductors Stranded tinned copper conductors to IEC 60228 class 2 or 5
Insulation XLPE
Sheath LSZH.

Electrical Characteristics at 20℃

Nominal Conductor Cross Section mm^2 4.0
Maximum DC Conductor Resistance Ω/km 4.7
Voltage Rating KV 0.6/0.1

Mechanical and Thermal Properties

  • Minimum Bending Radius: 7.5×OD
  • Temperature Range:-25℃ to +85℃ (during operation); -10℃ to +70℃ (during installation)

Dimensions and Weight

Cable Code No. of cores& Nominal Conductor Cross Sectional Area No. & Nominal Diameter of Strands Nominal Insulation Thickness Nominal Overall Diameter Nominal Weight
  No.×mm^2 No/mm mm mm kg/km
RF902-RZ1-U-0.6/1KV-1G4 1×4.0 7/0.85 0.8 21.6 624

U is changed to K if the stranding class is changed from class 2 to class 5
