CCPSSP-FR0.1 n×4×0.9/1.4
Application
The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standard

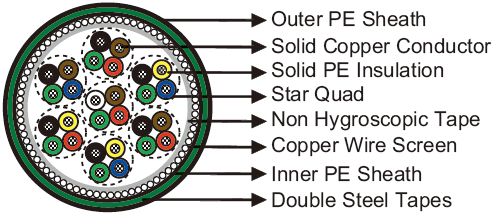

Cable Construction
| Conductors |
Soft annealed solid copper, 0.9/1.4 mm nominal diameter. |
| Insulation |
PE. |
| Cabling Element |
Four insulated conductors are twisted together to form a quad. |
| Stranding |
Quads are helically stranded in concentric layers. |
| Core Wrapping |
Two or more layers of plastic tape(s) with overlapping. |
| Screen |
0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference). |
| Inner Sheath |
PE sheath. |
| Armour |
Two layers steel tape (0.8mm thick). |
| Outer Sheath |
PE sheath. |
Electrical Characteristics at 20℃
| Nominal Conductor Diameter |
mm |
0.9 |
1.4 |
| Maximum Conductor Resistance |
Ω/km |
28.5 |
11.7 |
| Minimum Insulation Resistance @500 V DC |
MΩ.km |
35000 |
35000 |
| Mutual Capacitance @800Hz |
nF/km |
41 |
45 |
| Capacitance Unbalance @800Hz |
|
|
|
| K1 maximum individual value |
pF/460m |
250 |
250 |
| K9-12 maximum individual value |
pF/460m |
250 |
250 |
| ea1/2 maximum individual value |
pF/460m |
1200 |
1200 |
| Attenuation |
|
|
|
| @1KHz |
dB/km |
0.7 |
0.46 |
| @10KHz |
dB/km |
1.6 |
0.85 |
| @30KHz |
dB/km |
2.1 |
1.3 |
| Test Voltage @50Hz 1min |
|
|
|
| Core to Core |
Veff |
2100 |
2100 |
| Core to Screen |
Veff |
2500 |
2500 |
| Core to Armouring |
Veff |
2000 |
2000 |
| Reduction Factor @100V/km 50Hz |
|
0.3 |
0.3 |
Mechanical and Thermal Properties
- Minimum Bending Radius: 10×OD
- Temperature Range: -40℃ to +60℃ (during operation); -10℃ to +60℃ (during installation)
Dimensions and Weight
| Cable Code |
Number of Quads |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Nominal Weight |
| Inner |
Outer |
| |
|
mm |
mm |
mm |
kg/km |
| 0.9mm Conductor, 1.8mm Insulated Wire |
| RS/CCPSSP-FR0.1-2YD2YB2Y-1Q0.9 |
1 |
1.5 |
1.6 |
21.2 |
1140 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-3Q0.9 |
3 |
1.5 |
1.6 |
24.5 |
1370 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-5Q0.9 |
5 |
1.5 |
1.6 |
27.0 |
1610 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-7Q0.9 |
7 |
1.5 |
1.6 |
28.4 |
1750 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-10Q0.9 |
10 |
1.5 |
1.6 |
32.1 |
2060 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-12Q0.9 |
12 |
1.5 |
1.6 |
32.1 |
2130 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-14Q0.9 |
14 |
1.6 |
1.8 |
35.3 |
2380 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-19Q0.9 |
19 |
1.7 |
1.8 |
38.6 |
2760 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-25Q0.9 |
25 |
1.7 |
1.8 |
42.0 |
3150 |
| 1.4mm Conductor, 2.7mm Insulated Wire |
| RS/CCPSSP-FR0.1-2YD2YB2Y-1Q1.4 |
1 |
1.5 |
1.6 |
22.7 |
1280 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-3Q1.4 |
3 |
1.5 |
1.6 |
28.0 |
1690 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-5Q1.4 |
5 |
1.6 |
1.8 |
32.0 |
2070 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-7Q1.4 |
7 |
1.6 |
1.8 |
33.9 |
2320 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-10Q1.4 |
10 |
1.6 |
1.8 |
39.2 |
2860 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-12Q1.4 |
12 |
1.7 |
1.8 |
39.2 |
2980 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-14Q1.4 |
14 |
1.7 |
1.8 |
42.6 |
3340 |
| RS/CCPSSP-FR0.1-2YD2YB2Y-19Q1.4 |
19 |
1.8 |
2.0 |
48.5 |
4160 |
