Medium Voltage High Temperature Resistant Cables +180°C
Application
These cables are specifically designed for applications requiring for high temperature and oil resistant, suitable used for linking generators to transformers positioned up in the nacelle.
Standards

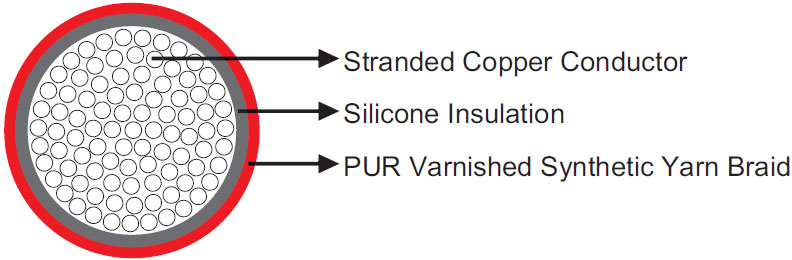

Construction
| Conductor |
Stranded tinned copper wires, class 5 according to IEC 60228 |
| Tape |
Polyester tape (up 16 mm^2), Semi-conductive layer (only for 6.6 and 13.8 kV) |
| Insulation |
Silicone rubber insulation |
| Braid |
PUR varnished synthetic yarn braid |
Technical Data
| Rated Voltage U0/U (Um) |
1.1kV-15kV |
| Operating Temperatures |
-55℃~+180℃ |
| Minimum Bending Radius |
6×OD (1.1kV); 12×OD (>=1.1kV) |
| Flame Retardant |
IEC 60332-1/IEC 60332-3 |
| Halogen Free |
IEC 60754 |
| Corrosive Gases |
IEC 60754 |
| Smoke Density |
IEC 61034 |
| Oil Resistant |
Yes |
| Ozone Resistant |
Yes |
| UV Resistant |
Yes |
| Cold Resistant |
CSA C 22.2 |
Dimensions and Weight
1.1kV
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×2.5 |
4.5 |
36 |
| 1×4 |
5.0 |
52 |
| 1×6 |
5.4 |
69 |
| 1×10 |
6.4 |
111 |
| 1×16 |
8.6 |
177 |
| 1×25 |
10.3 |
267 |
| 1×35 |
11.6 |
365 |
| 1×50 |
13.6 |
510 |
| 1×70 |
15.7 |
701 |
| 1×95 |
17.9 |
926 |
| 1×120 |
19.8 |
1154 |
| 1×150 |
21.9 |
1432 |
| 1×185 |
24.3 |
1761 |
| 1×240 |
26.9 |
2284 |
3.3-4.2kV
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×2.5 |
6.3 |
54 |
| 1×6 |
7.3 |
90 |
| 1×10 |
8.2 |
135 |
| 1×16 |
10.4 |
208 |
| 1×25 |
12.0 |
302 |
| 1×35 |
13.2 |
401 |
| 1×50 |
15.4 |
559 |
| 1×70 |
17.5 |
775 |
| 1×95 |
19.5 |
981 |
| 1×120 |
21.4 |
1215 |
| 1×150 |
23.1 |
1481 |
| 1×185 |
25.1 |
1798 |
| 1×240 |
27.5 |
2314 |
6.6-7.2kV
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×4 |
7.6 |
81 |
| 1×6 |
8.0 |
99 |
| 1×10 |
9.0 |
145 |
| 1×16 |
11.3 |
225 |
| 1×25 |
12.9 |
322 |
| 1×35 |
14.1 |
423 |
| 1×50 |
16.3 |
584 |
| 1×70 |
18.3 |
785 |
| 1×95 |
20.2 |
1006 |
| 1×120 |
22.0 |
1238 |
| 1×150 |
24.1 |
1525 |
| 1×185 |
26.1 |
1844 |
| 1×240 |
28.3 |
2355 |
13.8-15.0kV
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×10 |
12.1 |
205 |
| 1×16 |
14.0 |
288 |
| 1×25 |
15.5 |
390 |
| 1×35 |
16.7 |
497 |
| 1×50 |
18.5 |
655 |
| 1×70 |
20.6 |
864 |
| 1×95 |
22.4 |
1093 |
| 1×120 |
24.2 |
1332 |
| 1×150 |
26.5 |
1637 |
| 1×185 |
28.5 |
1966 |
| 1×240 |
30.7 |
2486 |
