H05V-K/H07V-K Internal Wiring Cable

Application

These cables are designed for the intenal wiring of devices, distributor and switchboards and also for protective laying to the lightings, suitable for laying in tubes, under and surface mounting of plasters and also in closed installation conduits.

Standards

  • DIN VDE 0281 part 3
  • HD 21.3 S3
  • IEC 60227-3

Construction

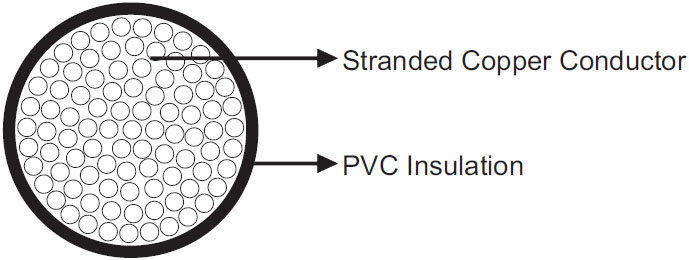

H05V-K/H07V-K Internal Wiring Cable
Conductor Stranded bare copper, class 5 according to DIN VDE 0295/HD 383/ IEC 60228
Insulation PVC

Technical Data

Rated Voltage U0/U(Um) 300/500V(H05V-K); 450/750V(H07V-K)
Operating Temperatures flexing: -5℃~+70℃; fixed: -30℃~+80℃
Minimum Bending Radius 15×OD
Flame Retardant VDE 0482-332-1-2/IEC 60332-1
Silicone Free Yes

Dimensions and Weight

H05V-K

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×0.5 2.1 9
1×0.75 2.4 12
1×1 2.6 15

H07V-K

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×1.5 3.0 24
1×2.5 3.7 35
1×4 4.3 51
1×6 4.9 71
1×10 6.5 118
1×16 8.0 180
1×25 9.8 278
1×35 11.0 375
1×50 13.0 560
1×70 15.5 780
1×95 17.0 952
1×120 19.7 1200
1×150 21.3 1505
1×185 23.5 1845
1×240 27.4 2400
