H07BN4-F 450/750V Torsion Resistant Cable

Application

These cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines and to be used for the loop.

Standards

  • DIN VDE 0282.12
  • HD 22.12

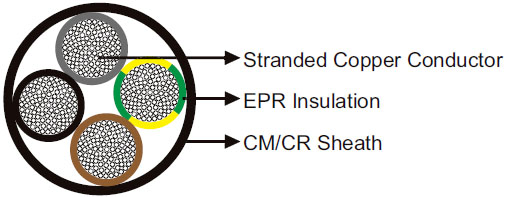

Construction

H07BN4-F 450/750V Torsion Resistant Cable
Conductor Stranded bare copper, class 5 according to DIN VDE 0295/HD 383/ IEC 60228
Insulation Cold and heat resistant EPR. Special cross-linked EI7 rubber for high temperatures can be offered upon request.
Sheath Ozone, UV-resistant, oil and cold-resistant special compound based on CM (chlorinated polyethylene)/CR (chloroprene rubber). Special cross-linked EM7 rubber can be offered upon request.

Technical Data

Rated Voltage U0/U (Um) 450/750V
Operating Temperatures -40℃~+90℃
Minimum Bending Radius 6×OD
Maximum Permissible Tensile Load 15 N/mm^2
Torsion Application +/-150°/m
Short-circuit Temperature 250℃
Flame Retardant EN 50265-1/EN 50265-2-1/IEC 60332-1
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×25 13.5 371
1×35 15.0 482
1×50 17.3 667
1×70 19.3 888
1×95 22.7 1160
1×(G)10 28.6 175
1×(G)16 28.6 245
1×(G)25 28.6 365
1×(G)35 28.6 470
1×(G)50 17.9 662
1×(G)70 28.6 880
1×(G)120 24.7 1430
1×(G)150 27.1 1740
1×(G)185 29.5 2160
1×(G)240 32.8 2730
1×300 36.0 3480
1×400 40.2 4510
10G1.5 19.0 470
12G1.5 19.3 500
12G2.5 22.6 670
18G1.5 22.6 725
18G2.5 26.5 980
2×1.5 28.6 110
2×2.5 28.6 160
2×4 12.9 235
2×6 14.1 275
2×10 19.4 530
2×16 21.9 730
2×25 26.2 1060
24G1.5 26.4 980
24G2.5 31.4 1390
3×25 28.6 1345
3×35 32.2 1760
3×50 37.3 2390
3×70 43.0 3110
3×95 47.2 4170
3×(G)1.5 10.1 130
3×(G)2.5 12.0 195
3×(G)4 13.9 285
3×(G)6 15.6 340
3×(G)10 21.1 650
3×(G)16 23.9 910
3×120 51.7 5060
3×150 57.0 6190
4G1.5 11.2 160
4G2.5 13.6 240
4G4 15.5 350
4G6 17.1 440
4G10 23.5 810
4G16 25.9 1150
4G25 31.0 1700
4G35 35.3 2170
4G50 40.5 3030
4G70 46.4 3990
4G95 52.2 5360
4G120 56.5 6480
5G1.5 12.2 230
5G2.5 14.7 295
5G4 17.1 430
5G6 19.0 540
5G10 25.0 1020
5G16 28.7 1350
5G25 35.0 2080
5G35 38.4 2650
5G50 43.9 3750
5G70 50.5 4950
5G95 57.8 6700
6G1.5 14.7 295
6G2.5 16.9 390
7G1.5 16.5 350
7G2.5 18.5 460
8×1.5 17.0 400
