UL/CSA 1000V PVC/PVC Torsion Resistant Cable 90°C

Application

These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.

Standards

  • UL 758

Construction

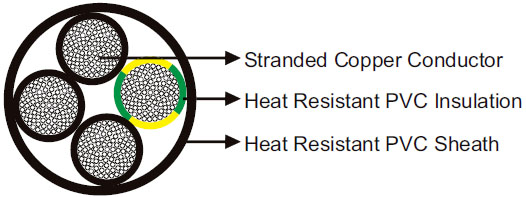

UL/CSA 1000V PVC/PVC Torsion Resistant Cable 90°C
Conductor Stranded bare copper according to DIN VDE 0295.
Insulation Special heat resistant PVC.
Sheath Special heat resistant PVC.

Technical Data

Rated Voltage U0/U (Um) 1000V
Operating Temperatures flexing: -35℃~+90℃; fixed: -40℃~+90℃
Minimum Bending Radius 10×OD
Torsion Application +/-140°/m
Flame Retardant FT1
Oil Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction AWG /MCM Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 - mm kg/km
4×0.34 22 7.1 86
4×0.5 20 7.4 99
6×0.5 20 8.6 121
10×0.5 20 10.8 165
12×0.5 20 11.1 208
3×0.75 19 7.3 77
4×0.75 19 7.9 100
5×0.75 19 8.6 120
7×0.75 19 10.0 170
10×0.75 19 11.0 200
12×0.75 19 11.8 220
14×0.75 19 12.5 238
16×0.75 19 13.2 271
18×0.75 19 13.9 310
21×0.75 19 15.2 380
25×0.75 19 16.9 490
32×0.75 19 18.2 560
36×0.75 19 19.1 620
40×0.75 19 20.5 729
41×0.75 19 20.8 750
50×0.75 19 23.5 990
4×1 18 8.3 100
5×1 18 9.0 110
7×1 18 10.5 140
10×1 18 13.0 220
12×1 18 13.2 240
14×1 18 13.4 280
16×1 18 14.1 310
18×1 18 15.1 360
21×1 18 16.7 410
25×1 18 18.4 500
32×1 18 19.8 590
36×1 18 20.6 700
40×1 18 22.4 800
41×1 18 22.4 810
50×1 18 24.6 980
2×1.5 16 7.9 75
3×1.5 16 8.0 110
4×1.5 16 8.9 131
5×1.5 16 9.7 165
7×1.5 16 12.0 210
10×1.5 16 13.1 270
12×1.5 16 14.3 360
14×1.5 16 14.9 420
16×1.5 16 15.7 450
18×1.5 16 16.8 510
21×1.5 16 17.8 590
25×1.5 16 20.6 700
32×1.5 16 22.2 900
36×1.5 16 23.1 980
40×1.5 16 25.0 1030
41×1.5 16 25.0 1050
50×1.5 16 27.7 1200
3×2.5 14 8.9 151
4×2.5 14 9.7 230
5×2.5 14 10.9 250
7×2.5 14 14.4 360
10×2.5 14 15.8 480
12×2.5 14 16.3 580
19×2.5 14 20.4 690
3×4 12 10.8 250
4×4 12 12.0 270
5×4 12 13.6 370
7×4 12 15.9 530
12×4 12 19.6 740
3×6 10 13.1 340
4×6 10 14.6 460
5×6 10 16.3 550
7×6 10 19.6 780
4×10 8 17.4 670
5×10 8 20.1 870
7×10 8 23.5 1150
4×16 6 22.6 1000
5×16 6 25.4 1250
4×25 4 26.5 1580
5×25 4 28.2 1900
4×35 2 31.4 2100
5×35 2 35.4 2600
4×50 1 36.7 2800
1×35 2 12.9 460
1×50 1 15.6 630
1×70 2/0 17.9 880
1×95 3/0 21.9 1230
1×120 4/0 23.1 1540
1×150 300 27.2 1870
1×185 350 27.5 2300
1×240 500 31.2 2970
1×300 600 34.2 3730
1×400 750 39.3 4500
