UL/CSA 600V PVC/PVC Screened Torsion Resistant Cable

Application

These cables with increased tolerance to torsion application, UV and oil resistant are specifically designed for wind power applications.

Standards

  • UL 758

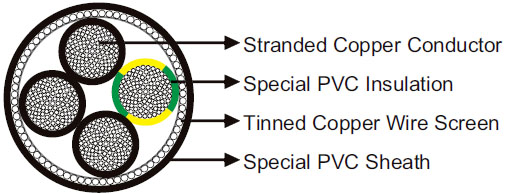

Construction

UL/CSA 600V PVC/PVC Screened Torsion Resistant Cable
Conductor Stranded bare copper according to DIN VDE 0295.
Insulation Special PVC flexible at low temperatures.
Screen Tinned copper wire wrapped.
Sheath Special PVC flexible at low temperatures.

Technical Data

Rated Voltage U0/U (Um) 1000V
Operating Temperatures -40℃~+80℃
Minimum Bending Radius 10×OD
Torsion Application +/-90°/m
Flame Retardant FT1
Oil Resistant Yes
UV Resistant Yes

Dimensions and Weight

Construction AWG /MCM Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 - mm kg/km
2×2×0.25 24 8.9 90
4×2×0.25 24 9.9 115
5×2×0.25 24 11.1 130
4×0.34 22 7.7 91
2×2×0.34 22 9.6 110
4×2×0.34 22 11.0 130
4×0.5 20 8.0 105
6×0.5 20 9.2 130
10×0.5 20 11.4 170
12×0.5 20 11.7 220
2×2×0.5 20 9.8 115
4×2×0.5 20 11.3 150
3×0.75 19 7.7 97
4×0.75 19 8.3 122
5×0.75 19 9.0 145
7×0.75 19 9.7 200
8×0.75 19 10.7 220
12×0.75 19 12.2 258
18×0.75 19 14.4 400
25×0.75 19 17.8 552
32×0.75 19 18.8 610
41×0.75 19 21.2 795
50×0.75 19 23.5 900
2×2×0.75 19 10.4 130
4×2×0.75 19 12.7 211
8×2×0.75 19 17.1 410
12×2×0.75 19 17.6 520
4×1.0 18 8.7 110
6×1.0 18 10.2 150
8×1.0 18 11.7 210
12×1.0 18 13.3 280
2×1.5 16 6.8 86
3×1.5 16 8.8 133
4×1.5 16 9.4 159
5×1.5 16 10.3 195
7×1.5 16 11.9 247
12×1.5 16 14.7 410
2×2×1.5 16 12.1 180
3×2×1.5 16 14.0 235
4×2×1.5 16 14.6 210
3×2.5 14 10.4 210
4×2.5 14 10.6 264
5×2.5 14 12.3 288
7×2.5 14 14.8 411
12×2.5 14 18.2 638
5×4 12 13.6 382
7×4 12 16.3 582
12×4 12 20.0 806
5×6 10 17.4 640
4×10 8 17.8 727
5×10 8 19.8 935
4×16 6 21.1 1072
5×16 6 26.2 1330
4×25 4 26.0 1664
5×25 4 28.6 2014
4×50 1 37.0 3200
1×70 2/0 19.8 950
1×95 3/0 22.5 1200
1×120 4/0 25.0 1400
1×150 300 24.9 2000
1×185 350 27.8 2340
1×240 500 32.5 3150
1×300 600 39.0 3920
