Multicore Overall Screened Cables-Belden Equivalent 8618

Applications :

  • These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

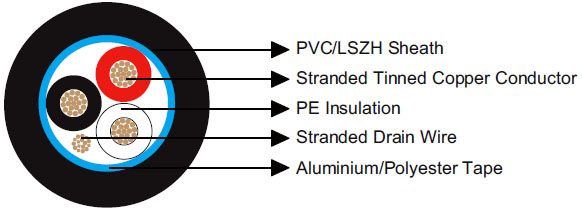

Construction :

  • Conductor Tinned copper wire.
    Insulation PE.
    Overall Screen: Aluminium/Polyester tape.
    Drain Wire: Tinned copper wire.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, Red, Clear.
  •

Electrical & Mechanical Characteristics :

  • AWG   16
    Conductor Construction   19x0.287
    UL Style   20253
    Maximum Conductor Resistance Ω/km 15.8
    Voltage Rating V 600
    Nominal Capacitance Conductor to Conductor pF/m 85
    Nominal Capacitance Conductor to Screen pF/m 164
    Bending Radius   10xOverall Diameter
    Operating Temperature -20~60

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE118618V 3 0.79 0.79 8.3
    BE118618H 3 0.79 0.79 8.3
