Multicore Overall Screened Cables-Belden Equivalent 8729

Applications :

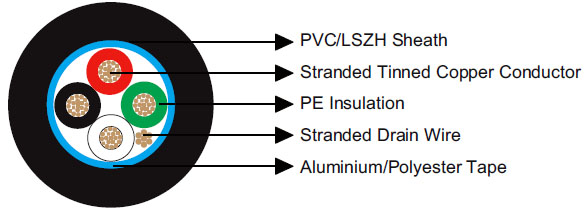

  • These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a drain wire. These cables are suitable for used as audio, control and instrumentation cables.

Construction :

  • Conductor Tinned copper wire.
    Insulation PE.
    Overall Screen: Aluminium/Polyester tape.
    Drain Wire: Tinned copper covered steel.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, Red, Green, Clear.
  •

Electrical & Mechanical Characteristics :

  • AWG   22
    Conductor Construction   19x0.16
    UL Style   2094
    Maximum Conductor Resistance Ω/km 54.8
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 72
    Nominal Capacitance Conductor to Screen pF/m 138
    Bending Radius   10xOverall Diameter
    Operating Temperature -40~75

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE118729V 4 0.41 1.30 6.5
    BE118729H 4 0.41 1.30 6.5
