Multicore Overall Screened Cables-Belden Equivalent 8735

Applications :

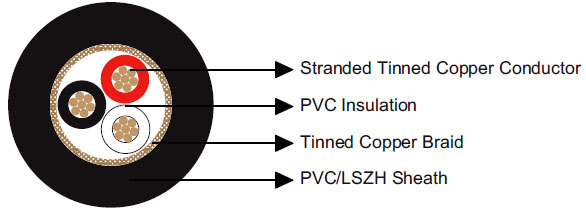

  • These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as communication and instrumentation cables.

Construction :

  • Conductor Tinned copper wire.
    Insulation PVC.
    Overall Screen: Tinned copper braid,70% coverage.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, Red, White.
  •

Electrical & Mechanical Characteristics :

  • AWG   22
    Conductor Construction   7x0.254
    UL Style   2095
    Maximum Conductor Resistance Ω/km 54.8
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 112
    Nominal Capacitance Conductor to Screen pF/m 197
    Bending Radius   10xOverall Diameter
    Operating Temperature -20~80

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE118735V 3 0.38 0.64 5.1
    BE118735H 3 0.38 0.64 5.1
