Multicore Overall Screened Cables-Belden Equivalent 8771

Applications :

  • These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

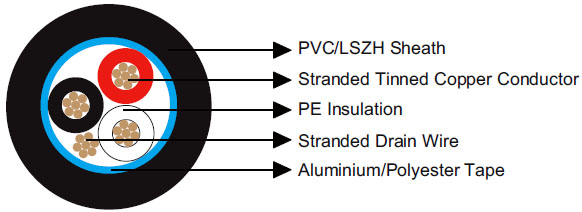

Construction :

  • Conductor Tinned copper wire.
    Insulation PE.
    Overall Screen: Aluminium/Polyester tape.
    Drain Wire: Stranded tinned copper.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, Red, Clear.
  •

Electrical & Mechanical Characteristics :

  • AWG   22
    Conductor Construction   7x0.254
    UL Style   2093
    Maximum Conductor Resistance Ω/km 54.8
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 75
    Nominal Capacitance Conductor to Screen pF/m 135
    Bending Radius   10xOverall Diameter
    Operating Temperature -20~60

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE118771V 3 0.41 0.84 5.1
    BE118771H 3 0.41 0.84 5.1
