Applications :

• These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for used as audio, control and instrumentation cables.

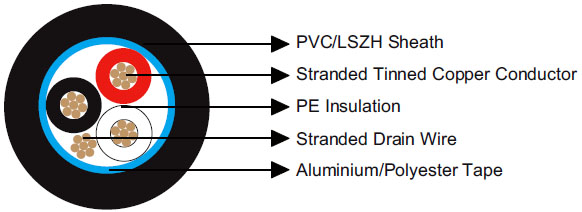

Construction :

• Conductor	Tinned copper wire.
  Insulation	PE.
  Overall Screen:	Aluminium/Polyester tape.
  Drain Wire:	Tinned copper wire.
  Sheath:	PVC (V type)/LSZH (H type).
  Insulation Colour:	Black, Red, Clear.

Electrical & Mechanical Characteristics :

• AWG		20
  Conductor Construction		7x0.32
  UL Style		2093
  Maximum Conductor Resistance	Ω/km	34.1
  Voltage Rating	V	300
  Nominal Capacitance Conductor to Conductor	pF/m	89
  Nominal Capacitance Conductor to Screen	pF/m	167
  Bending Radius		10xOverall Diameter
  Operating Temperature	℃	-20~60

Dimensions :

• Ordering Code	No. of Cores	Insulation Thickness	Sheath Thickness	Overall Diameter
  		mm	mm	mm
  BE118772V	3	0.41	0.84	5.5
  BE118772H	3	0.41	0.84	5.5
