Multicore Overall Screened Cables-Belden Equivalent 9260

Applications :

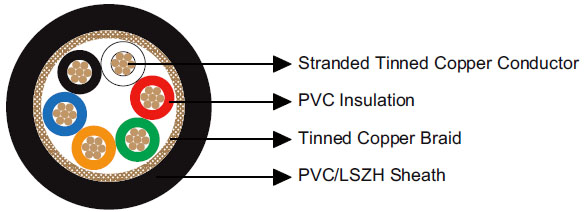

  • These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as control cables.

Construction :

  • Conductor Tinned copper wire.
    Insulation PVC.
    Overall Screen: Tinned copper braid,85% coverage.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, White, Red, Green, Orange, Blue.
  •

Electrical & Mechanical Characteristics :

  • AWG   20
    Conductor Construction   7x0.32
    UL Style   2464
    Maximum Conductor Resistance Ω/km 34.1
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 85
    Nominal Capacitance Conductor to Screen pF/m 164
    Bending Radius   10xOverall Diameter
    Operating Temperature -20~80

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE119260V 6 0.41 0.81 7.8
    BE119260H 6 0.41 0.81 7.8
