Multicore Overall Screened Cables-Belden Equivalent 9261

Applications :

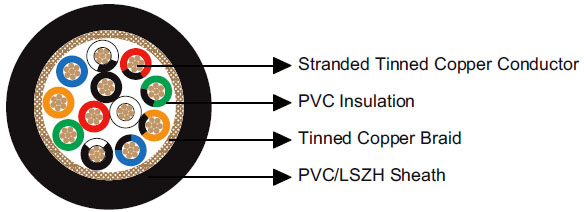

  • These multicore overall screened cables have individually insulated cores laid up in a tinned copper braid screen, suitable for used as control cables.

Construction :

  • Conductor Tinned copper wire.
    Insulation PVC.
    Overall Screen: Tinned copper braid,85% coverage.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White.
  •

Electrical & Mechanical Characteristics :

  • AWG   20
    Conductor Construction   7x0.32
    UL Style   2464
    Maximum Conductor Resistance Ω/km 34.1
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 85
    Nominal Capacitance Conductor to Screen pF/m 187
    Bending Radius   10xOverall Diameter
    Operating Temperature -20~80

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE119261V 12 0.41 1.02 10.1
    BE119261H 12 0.41 1.02 10.1
