Multicore Overall Screened Cables-Belden Equivalent 9418

Applications :

  • These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

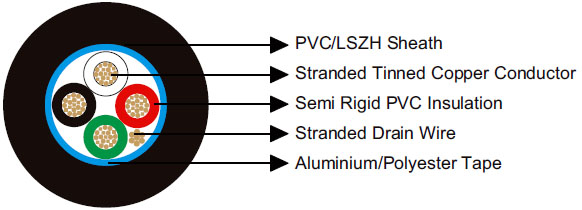

Construction :

  • Conductor Tinned copper wire.
    Insulation Semi-Rigid PVC.
    Overall Screen: Aluminium/Polyester tape.
    Drain Wire: Stranded tinned copper.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Red, Green, Black, White.
  •

Electrical & Mechanical Characteristics :

  • AWG   18
    Conductor Construction   19x0.254
    UL Style   2464
    Maximum Conductor Resistance Ω/km 23
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 131
    Nominal Capacitance Conductor to Screen pF/m 236
    Bending Radius   10xOverall Diameter
    Operating Temperature -20~80

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE119418V 4 0.28 0.89 6.2
    BE119418H 4 0.28 0.89 6.2
