Multicore Overall Screened Cables-Belden Equivalent 9540
![](../images/line.jpg)
Applications :
- These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.
Construction :
-

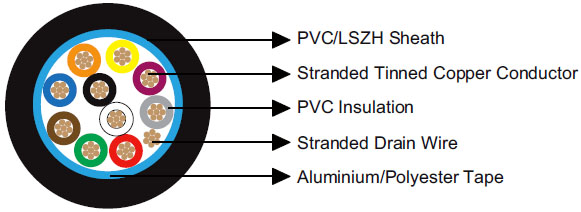

Conductor Tinned copper wire. Insulation PVC. Overall Screen: Aluminium/Polyester tape. Drain Wire: Stranded tinned copper, 7x0.20. Sheath: PVC (V type)/LSZH (H type). Insulation Colour: Black, White, Red, Green, Brown, Blue, Orange, Yellow, Purple, Gray. -
Electrical & Mechanical Characteristics :
-
AWG 24 Conductor Construction 7x0.20 UL Style 2464 Maximum Conductor Resistance Ω/km 85 Voltage Rating V 300 Nominal Capacitance Conductor to Conductor pF/m 98 Nominal Capacitance Conductor to Screen pF/m 180 Bending Radius 10xOverall Diameter Operating Temperature ℃ -30~80
Dimensions :
-
Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter mm mm mm BE119540V 10 0.25 0.81 6.2 BE119540H 10 0.25 0.81 6.2
