Multicore Overall Screened Cables-Belden Equivalent 9544

Applications :

  • These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

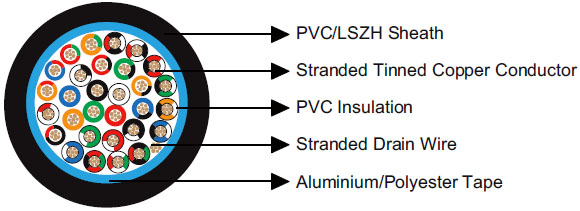

Construction :

  • Conductor Tinned copper wire.
    Insulation PVC.
    Overall Screen: Aluminium/Polyester tape.
    Drain Wire: Stranded tinned copper, 7x0.20.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green, Orange/Green, Black/White/Red, White/Black/Red, Red/Black/White, Green/Black/White, Orange/Black/White, Blue/Black/White, Black/Red/Green, White/Red/Green, Red/Black/Green.
  •

Electrical & Mechanical Characteristics :

  • AWG   24
    Conductor Construction   7x0.20
    UL Style   2464
    Maximum Conductor Resistance Ω/km 85
    Voltage Rating V 300
    Nominal Capacitance Conductor to Conductor pF/m 98
    Nominal Capacitance Conductor to Screen pF/m 180
    Bending Radius   10xOverall Diameter
    Operating Temperature ℃ -30~80

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE119544V 30 0.25 1.02 9.7
    BE119544H 30 0.25 1.02 9.7
