Applications :

• These multicore overall screened cables have individually insulated cores laid up in an aluminum/polyester tape with a tinned copper drain wire. These cables are suitable for RS232 applications, used as audio, control and instrumentation cables.

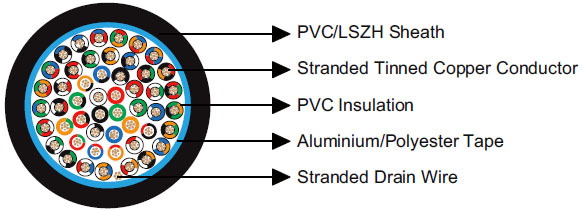

Construction :

• Conductor	Tinned copper wire.
  Insulation	PVC.
  Overall Screen:	Aluminium/Polyester tape.
  Drain Wire:	Stranded tinned copper, 7x0.20.
  Sheath:	PVC (V type)/LSZH (H type).
  Insulation Colour:	Black, White, Red, Green, Orange, Blue, White/Black, Red/Black, Green/Black, Orange/Black, Blue/Black, Black/White, Red/White, Green/White, Blue/White, Black/Red, White/Red, Orange/Red, Blue/Red, Red/Green, Orange/Green, Black/White/Red, White/Black/Red, Red/Black/White, Green/Black/White, Orange/Black/White, Blue/Black/White, Black/Red/Green, White/Red/Green, Red/Black/Green, Green/Black/Orange, Orange/Black/Green, Blue/White/Orange, Black/White/Orange, White/Red/Orange, Orange/White/Blue, White/Red/Blue, Black/White/Green, White/Black/Green, Red/White/Green, Green/White/Blue, Orange/Red/Green, Blue/Red/Green, Black/White/Blue, White/Black/Blue, Red/White/Blue, Green/Orange/Red, Orange/Red/Blue, Blue/Red/Orange, Black/Orange/Red.

Electrical & Mechanical Characteristics :

• AWG		24
  Conductor Construction		7x0.20
  UL Style		2464
  Maximum Conductor Resistance	Ω/km	85
  Voltage Rating	V	300
  Nominal Capacitance Conductor to Conductor	pF/m	98
  Nominal Capacitance Conductor to Screen	pF/m	180
  Bending Radius		10xOverall Diameter
  Operating Temperature	℃	-30~80

Dimensions :

• Ordering Code	No. of Cores	Insulation Thickness	Sheath Thickness	Overall Diameter
  		mm	mm	mm
  BE119546V	50	0.25	1.14	12.5
  BE119546H	50	0.25	1.14	12.5
