Multicore Overall Foil & Braid Screened Cables-Belden Equivalent 9791

Applications :

  • These multicore overall screened cables have individually insulated cores laid up in a Foil & Braid screen. These cables are suitable for RS-232 and RS-423 applications.

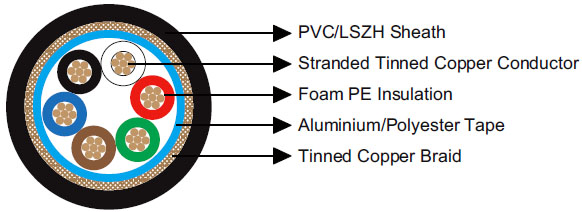

Construction :

  • Conductor Tinned copper wire.
    Insulation Foam PE.
    Overall Screen1: Aluminium/Polyester tape.
    Overall Screen2: Tinned copper braid, 65% coverage.
    Sheath: PVC (V type)/LSZH (H type).
    Insulation Colour: Black, White, Red, Green, Brown, Blue.
  •

Electrical & Mechanical Characteristics :

  • AWG   28
    Conductor Construction   7x0.127
    UL Style   2919
    Maximum Conductor Resistance Ω/km 148.6
    Voltage Rating V 30
    Nominal Capacitance Conductor to Conductor pF/m 39
    Nominal Capacitance Conductor to Screen pF/m 72
    Bending Radius   10xOverall Diameter
    Operating Temperature -30~80

Dimensions :

  • Ordering Code No. of Cores Insulation Thickness Sheath Thickness Overall Diameter
        mm mm mm
    BE119791V 6 0.4 0.6 5.7
    BE119791H 6 0.4 0.6 5.7
