Applications :

• Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive. Conforming to the EIA/TIA-568 standard, These cables support halfduplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.

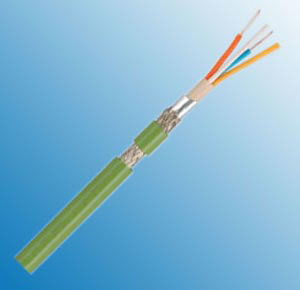

Construction :

• Type/Area of Application	Fixed Installation, Indoor	Heavy Duty
  Cable Construction	2x2x0.64 mm	2x2x0.64 mm
  Inner Conductor Diameter	Copper, bare (AWG 22/1)	Copper, bare (AWG 22/1)
  Conductor Insulation	PE	PE
  Conductor Colors	white, yellow, blue, orange	white, yellow, blue, orange
  Stranding Element	Star quad	Star quad
  Wrapping	Polyester foil over stranded bundle	Polyester foil over stranded bundle
  Shielding	Polyester foil, aluminum-lined	Polyester foil, aluminum-lined
  Total Shielding	Cu braid, tinned	Cu braid, tinned
  Inner Jacket Material	PVC	PVC
  Outer Jacket Material	PVC	PUR
  Outer Diameter	6.5 mm ± 0.2 mm	6.5 mm ± 0.2 mm
  Outer Jacket Color	Green	Green

Electrical Data :

• Characteristic Impedance@1-100 MHz	100 Ohm ± 15 Ohm
  Conductor Resistance	62.0 Ohm/km max.
  Insulation Resistance	0.50 GOhm x km min.
  Mutual Capacitance	50.0 nF/km nom.
  Working Voltage	300V
  Test Voltage	1.5 KV
  Attenuation	10 MHz	5.2 dB/10m
  	16 MHz	6.9 dB/10m
  	62.5 MHz	62.5 dB/10m
  	100 MHz	19.5 dB/10m

Technical Data :

• Weight	approximately 67.0 kg/km	approximately 64.0 kg/km
  Min. Bending Radius (Laying)	5 x OD mm	10 x OD mm
  Operating Temp. Range, min.	-40 °C	-40 °C
  Operating Temp.Range, max.	+70 °C	+70 °C
