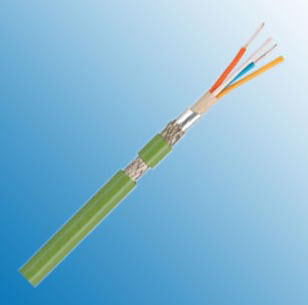

ProfiNet Type A Radiation Resistant & Armored



Applications :

  • Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive.

    Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.

Construction :

  • Type/Area of Application Ray loaded areas Fixed Installation, Outdoor
    Cable Construction 2x2x0.64 mm 2x2x0.64 mm
    Inner Conductor Diameter Copper, bare (AWG 22/1) Copper, bare (AWG 22/1)
    Conductor Insulation XLPE ray cross-linking PE
    Conductor Colors white, yellow, blue, orange white, yellow, blue, orange
    Stranding Element Star quad Star quad
    Wrapping Polyester foil over stranded bundle Polyester foil over stranded bundle
    Shielding Polyester foil, aluminum-lined Polyester foil, aluminum-lined
    Total Shielding Cu braid, tinned Cu braid, tinned
    Armoring - Steel Rib
    Inner Jacket Material TPR cross-linking PVC
    Outer Jacket Material PUR PE
    Outer Diameter 6.5 mm ± 0.2 mm 9.3 mm ± 0.5 mm
    Outer Jacket Color Green Black

Electrical Data :

  • Characteristic Impedance@1-100 MHz 100 Ω ± 15 Ω
    Conductor Resistance 62.0 Ohm/km max.
    Insulation Resistance 0.50 GOhm x km min.
    Mutual Capacitance 50.0 nF/km nom.
    Working Voltage 300V
    Test Voltage 1.5 KV
    Attenuation 10 MHz 5.2 dB/10m
    16 MHz 6.9 dB/10m
    62.5 MHz 62.5 dB/10m
    100 MHz 19.5 dB/10m

Technical Data :

  • Weight approximately 63.0 kg/km approximately 124.0 kg/km
    Min. Bending Radius (Laying) 46.0 mm 93.0 mm
    Operating Temp. Range, min. -40 °C -40 °C
    Operating Temp.Range, max. +80 °C +70 °C
