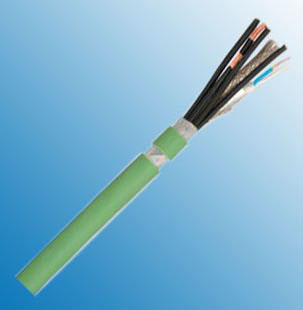

ProfiNet Type B



Applications :

  • Industrial Ethernet ProfiNet cables are designed to provide reliable network communications in the demanding Industrial and Process Control environment where difficult EMC conditions are pervasive.
    Conforming to the EIA/TIA-568 standard, These Cables support half-duplex high speed communications.It ensures superior transmission properties and can be used even under most severe conditions.

Construction :

  • Type/Area of Application Mobile Use
    Cable Construction 2x2x0.64 mm (stranded) + 4x1.5 mm2
    Inner Conductor Diameter 1 Copper, tinned (AWG 22/7)
    Inner Conductor Diameter 2 Copper, bare (AWG 16/84)
    Conductor Insulation 1 Foam-Skin-PE
    Conductor Insulation 2 Foam-Skin-PE
    Conductor Colors 1 white, yellow, blue, orange
    Conductor Colors 2 Black
    Stranding Element Double Conductor
    Wrapping Polyester foil over stranded bundle
    Shielding Polyester foil, aluminum lined
    Total Shielding Polyester foil
    Outer Jacket Material FRNC
    Outer Diameter 10.3 mm ± 0.3 mm
    Outer Jacket Color Green

Electrical Data :

  • Characteristic Impedance@1-100 MHz 100 Ω ± 15 Ω
    Conductor Resistance 60.0 Ohm/km max.
    Insulation Resistance 0.50 GOhm x km min.
    Mutual Capacitance 52.0 nF/km nom.
    Working Voltage 300V
    Test Voltage 1.5 KV
    Attenuation 10 MHz 6.3 dB/10m
    16 MHz 8.0 dB/10m
    62.5 MHz 16.5 dB/10m
    100 MHz 21.3 dB/10m

Technical Data :

  • Weight approximately 153.0 kg/km
    Min. Bending Radius for Laying 10 x OD mm
    Operating Temperature Range, min. -40 °C
    Operating Temperature Range, max. +70 °C
