Profibus SK FRNC + Industry



Applications :

  • The application of these Profibus SK cables are in the cell and field area, just as for conventional types.

    The great advantage of this new system is the quick connection of the cable to the respective plugs.

    This type of processing also avoids errors.

    The types mentioned here are suitable for indoor laying (special FRNC jacket) and heavy industry laying (PUR jacket).

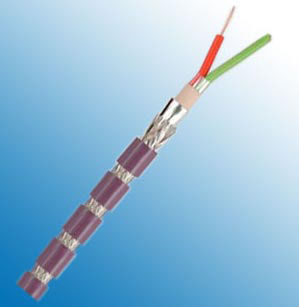

Construction :

  • Type/Area of Application Fixed Installation, Indoor/Heavy Duty
    Cable Construction 1x2x0.64 mm
    Inner Conductor Diameter Copper, bare (AWG 22/1)
    Conductor Insulation Foam-skin-PE
    Conductor Colors red, green
    Stranding Element 2 conductors + filler
    Wrapping Polyester foil over stranded bundle
    Shielding Polyester foil, aluminum-lined
    Total Shielding Copper braid, tinned
    Outer Jacket Material FRNC/PUR
    Outer Diameter 8.0 mm ± 0.4 mm
    Outer Jacket Color Violet

Electrical Data :

  • CharacteristicImpedance@3-20Hz 150 Ω ± 10 Ω
    Conductor Resistance 57.1 Ohm/km max.
    Insulation Resistance 1.00 GOhm x km min.
    Mutual Capacitance@1KHz 35.0 nF/km nom.
    Working Voltage 300V
    Test Voltage 1.5 KV
    Attenuation 9.6 kHz < 2.5 dB/km
    38.4 kHz < 4 dB/km
    4 MHz < 22 dB/km
    16 MHz < 42 dB/km

Technical Data :

  • Weight approximately 73.0 kg/km approximately 71.0 kg/km
    Min. Bending Radius (Laying) 18 x OD mm 15 x OD mm
    Operating Temp.Range, min. - 25 °C - 40 °C
    Operating Temp.Range, max. +60 °C +70 °C
