LCX12(1/2″) L

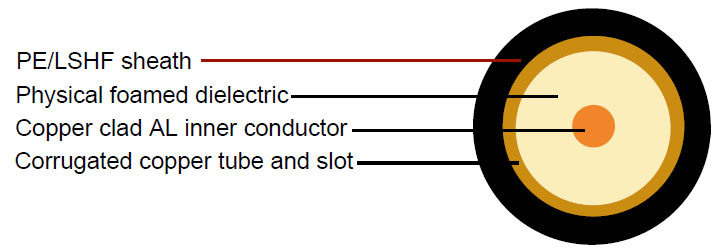

Construction :

  • Inner conductor Coppe clad Aluminium or copper Φ4.8 mm
    Dielectric Foam PE Φ12.3 mm
    Outer conductor Corrugated copper tube and slot Φ13.8 mm
    Sheath PE/LSOH Φ15.7 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 1.48 Ohm/Km
    Outer conductor resistance 2.10 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Cable weight (approx.) 230kg/km/260kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    75 2.0 0.61
    150 2.9 0.88
    450 5.3 1.62
    800 7.3 2.23
    900 7.9 2.41
    1800 12.0 3.66
    2200 13.5 4.12
    2400 14.1 4.30
