LCX12(1/2″) R

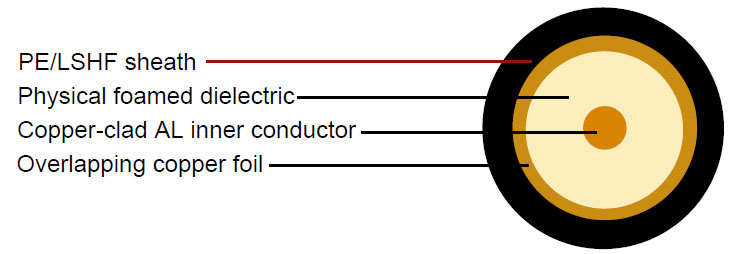

Construction :

  • Inner conductor Copper-clad Aluminium or copper Φ4.8 mm
    Dielectric Foam PE Φ12.3 mm
    Outer conductor Overlapping copper foil Φ13.8 mm
    Sheath PE/LSOH Φ15.7 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 1.48 Ohm/Km
    Outer conductor resistance 3.40 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Cable weight (approx.) 190kg/km/230kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    150 3.3 1.01
    450 5.9 1.80
    800 8.4 2.56
    900 9.1 2.77
