LCX22(7/8″) L

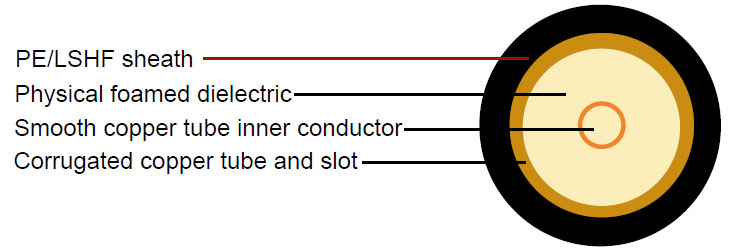

Construction :

  • Inner conductor Smooth copper tube Φ9.0 mm
    Dielectric Foam PE Φ22.5 mm
    Outer conductor Corrugated copper tube and slot Φ24.9 mm
    Sheath PE/LSOH Φ27.7 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 1.0 Ohm/Km
    Outer conductor resistance 1.2 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Cable weight (approx.) 520kg/km/570kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    75 1.2 0.37
    150 1.7 0.52
    450 3.1 0.95
    800 4.3 1.31
    900 4.6 1.40
    1800 4.9 1.49
    2200 7.8 2.38
    2400 8.6 2.62
