LCX32(1-1/4″) R

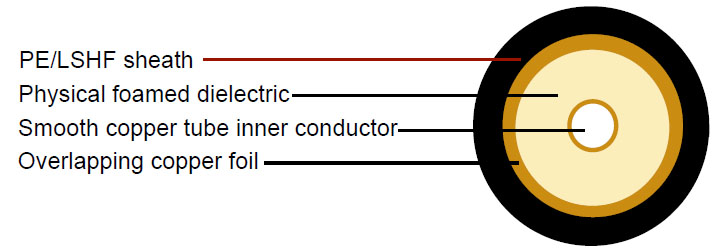

Construction :

  • Inner conductor Smooth copper tube Φ13.0mm
    Dielectric Foam PE Φ32.8 mm
    Outer conductor Overlapping copper foil Φ33.6 mm
    Sheath PE/LSOH Φ38.2 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 0.7 Ohm/Km
    Outer conductor resistance 1.7 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Cable weight (approx.) 840kg/km/970kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    75 1.00 0.30
    150 1.35 0.41
    450 2.30 0.70
    800 4.00 1.22
    900 4.35 1.33
