LCX42(1-5/8″) L

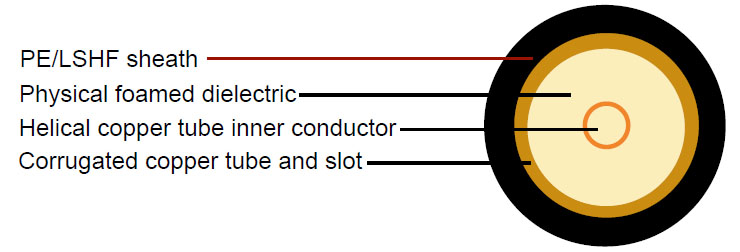

Construction :

  • Inner conductor Helical copper tube Φ17.4 mm
    Dielectric Foam PE Φ42.8 mm
    Outer conductor Corrugated copper tube and slot Φ46.5 mm
    Sheath PE/LSOH Φ49.5 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 0.85 Ohm/Km
    Outer conductor resistance 0.60 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Cable weight (approx.) 1290kg/km/1430kg/km

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation(dB/100ft)
    75 0.6 0.18
    150 0.8 0.24
    450 1.9 0.58
    800 2.6 0.79
    900 2.7 0.82
    1800 4.4 1.34
    2200 5.1 1.55
    2400 5.5 1.68
