RF42(1-5/8″)

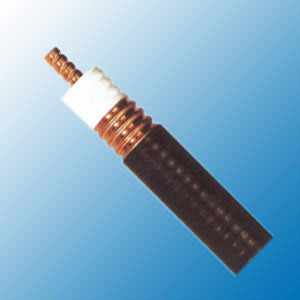

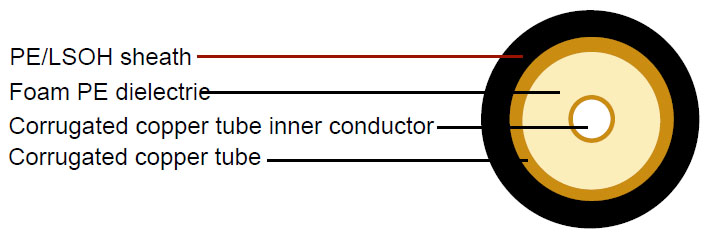

Construction :

  • Inner conductor Corrugated copper tube Φ17.4 mm
    Dielectric Foam PE Φ42.8 mm
    Outer conductor Corrugated copper Φ46.5 mm
    Sheath PE/LSOH Φ49.5 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 76 pF/m
    Velocity of propagation 88%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 0.82 Ohm/Km
    Outer conductor resistance 0.43 Ohm/Km
    Installation temperature range -40°C - +60 °C
    Operating temperature range -55°C - +85°C
    Test voltage 11 KV
    Cable weight (approx.) 1340kg/km
    Operating Frequency Band 1 – 2700 MHz
    Screening effectiveness >120dB

Attenuation :

  • Frequency
    (MHz)
    Attenuation
    (dB/100m)
    Attenuation
    (dB/100ft)
    Frequency
    (MHz)
    Attenuation
    (dB/100m)
    Attenuation
    (dB/100ft)
    10 0.20 0.06 1500 3.10 0.94
    100 0.67 0.20 1700 3.35 1.02
    150 0.83 0.25 1800 3.47 1.06
    200 0.98 0.30 1900 3.66 1.12
    300 1.22 0.37 2000 3.71 1.13
    450 1.53 0.47 2100 3.82 1.16
    500 1.63 0.50 2200 3.93 1.20
    700 1.97 0.60 2300 4.05 1.23
    800 2.13 0.65 2500 4.27 1.30
    900 2.28 0.69 2700 4.48 1.37
    1000 2.43 0.74

Return Loss :

  • 806-960 MHz 24.3dB
    1700-2000 MHz 24.3dB
