CT 100

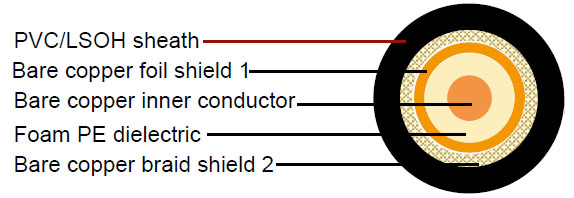

Construction :

  • Inner conductor Bare copper Φ1.00 mm
    Dielectric Foam PE Φ4.60 mm
    Outer conductor (shield 1) Copper Foil Φ4.75 mm
    Shield coverage 1   Φ100%
    Outer conductor (shield 2) Bare copper braid 96x0.10 mm
    Shield coverage 2   55%
    Sheath PVC/LSOH Φ6.55 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 50 pF/m
    Velocity of propagation 85%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 21.4 Ohm/Km
    Outer conductor resistance - Ohm/Km
    Rated temperature 70°C
    Operating voltage 30 V
    Cable weight (approx.) 57 kg/km
    Screening effectiveness >75 dB (30-1000MHz) >65 dB (1000-2150MHz)

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 4.6 1.40
    100 6.5 1.98
    200 9.5 2.90
    460 15.0 4.57
    860 19.5 5.95
    1000 21.5 6.55
    1750 29.0 8.84
    2150 32.5 9.91

Return Loss :

  • 5-470 MHz >23dB
    470-860 MHz >20dB
    860-2150 MHz >18dB
