CT 165

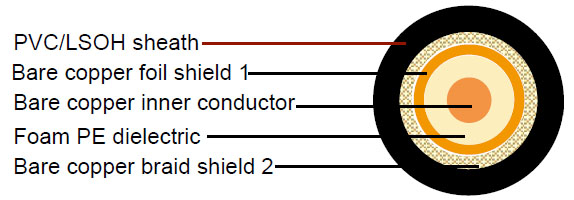

Construction :

  • Inner conductor Bare copper Φ1.63 mm
    Dielectric Foam PE Φ7.20 mm
    Outer conductor (shield 1) Copper Foil Φ7.39 mm
    Shield coverage 1   100%
    Outer conductor (shield 2) Bare copper braid 96x0.10 mm
    Shield coverage 2   55%
    Sheath PVC/LSOH Φ10.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 50 pF/m
    Velocity of propagation 85%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 8.45 Ohm/Km
    Outer conductor resistance - Ohm/Km
    Rated temperature 70°C
    Operating voltage 30 V
    Cable weight (approx.) 116 kg/km
    Screening effectiveness >75 dB (30-1000MHz) >65 dB (1000-2150MHz)

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 3.0 0.91
    100 4.0 1.22
    200 6.0 1.83
    460 9.0 2.74
    860 12.5 3.81
    1000 13.5 4.12
    1750 19.0 5.79
    2150 22.0 6.71

Return Loss :

  • 5-470 MHz >23dB
    470-860 MHz >20dB
    860-2150 MHz >18dB
