5 X SL 28810

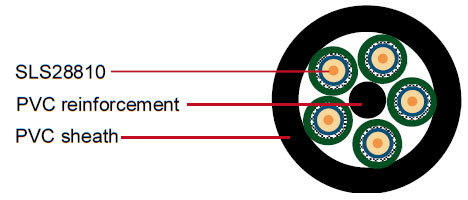

Construction :

  • Inner conductor Plain copper 0.6 mm
    Dielectric Gas injected foam PE Φ2.80 ± 0.10 mm
    Outer conductor (shield 1) Aluminium + polyester + Aluminium tape
    Shield coverage   100%
    Outer conductor (shield 2) Tinned copper 128 x 0.10 mm
    Shield coverage   90%
    Individual sheath PVC Φ4.50 ± 0.10 mm
    Overall sheath PVC Φ14.20 ± 0.40 mm
    Reinforcement PVC
  •
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 56 pF/m
    Velocity of propagation 80%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 62 Ohm/Km
    Outer conductor resistance 17.5 Ohm/Km
    Operating temperature range -25 °C - +80 °C
    Copper weight 61.0 Kg/Km
    Cable weight (approx.) 192.7 Kg/Km
    Screening effectiveness >85 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 7.8 2.38
    200 15.1 4.60
    470 23.5 7.16
    860 32.7 9.97
    1000 35.6 10.85
    1350 41.7 12.71
    1500 44.8 13.66
    1750 48.0 14.63
    2150 54.2 16.52
    2400 57.8 17.62

Return Loss :

  • 30-300 MHz >32dB
    300-600 MHz >27dB
    600-900 MHz >23dB
