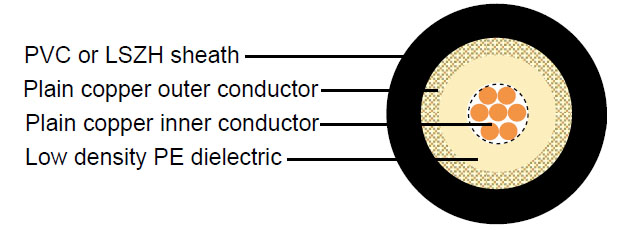

Construction :

• Inner conductor	Plain copper	7 x 0.40 mm
  Dielectric	Low density PE	Φ7.25 ± 0.18 mm
  Outer conductor (shield)	Plain copper	112 x 0.15 mm
  Shield coverage		64%
  Sheath	PVC or LSZH	Φ10.3 ± 0.18 mm

•

Electrical & Mechanical Characteristics :

• Impedance	75±5 Ohm
  Nominal capacitance	67 pF/m
  Velocity of propagation	66%
  Insulation resistance	>2000 Mohm.Km
  Inner conductor resistance	20.5 Ohm/Km
  Outer conductor resistance	10 Ohm/Km
  Operating temperature range	-30 °C - +70 °C
  Copper weight	27.8 Kg/Km
  Cable weight (approx.)	118.2 Kg/Km
  Screening effectiveness	>45 dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ft)
  50	4.4	1.34
  100	6.4	1.95
  200	9.7	2.96
  400	14.3	4.36
  500	16.1	4.91
  600	17.9	5.46
  860	22.0	6.71
  1000	24.4	7.44

Return Loss :

• 30-300 MHz	>30dB
  300-600 MHz	>27dB
  600-900 MHz	>25dB
