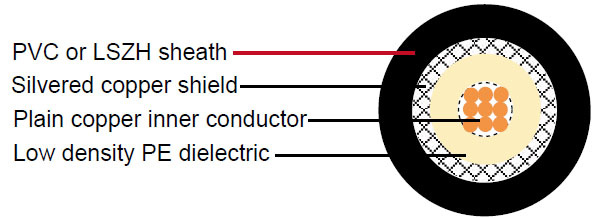

Construction :

• Inner conductor	Plain copper	9 x 0.10 mm
  Dielectric	Foam PE	Φ1.50 ± 0.08 mm
  Outer conductor (shield)	Silver plated copper	72 x 0.10 mm
  Shield coverage		90%
  Sheath	PVC or LSZH	Φ2.80 ± 0.13 mm

•

Electrical & Mechanical Characteristics :

• Impedance	75±5 Ohm
  Nominal capacitance	67 pF/m
  Velocity of propagation	66%
  Insulation resistance	>5000 Mohm.Km
  Inner conductor resistance	250 Ohm/Km
  Outer conductor resistance	35 Ohm/Km
  Operating temperature range	-25 °C - +80 °C
  Copper weight	5.85 Kg/Km
  Cable weight (approx.)	12.95 Kg/Km
  Screening effectiveness	>50 dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ft)
  50	19.2	5.85
  100	27.9	8.51
  200	40.7	12.41
  400	59.2	18.05
  500	67.5	20.58
  600	72.6	22.13
  860	91.1	27.77
  1000	101.0	30.79

Return Loss :

• 30-300 MHz	>20dB
  300-600 MHz	>20dB
  600-900 MHz	>20dB
