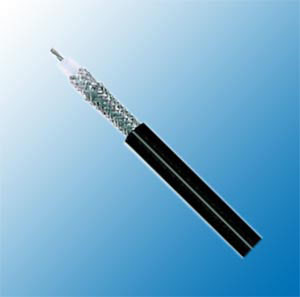

RG 214 PK

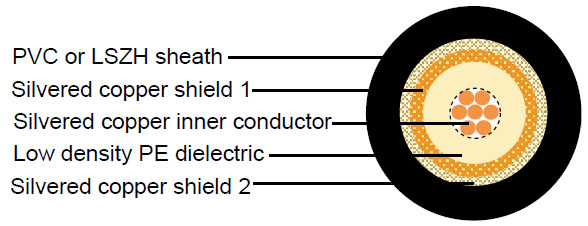

Construction :

  • Inner conductor Silver plated copper 7 x 0.75 mm
    Dielectric Low density PE Φ7.25 ± 0.18 mm
    Outer conductor(shield 1) Silver plated copper 168 x 0.13 mm
    Shield coverage   79%
    Outer conductor(shield 2) Silver plated copper 168 x 0.13 mm
    Shield coverage   76%
    Sheath PVC or LSZH Φ10.8 ± 0.18 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 100 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 6.0 Ohm/Km
    Outer conductor resistance 3.8 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 75.2 Kg/Km
    Cable weight (approx.) 167.6 Kg/Km
    Screening effectiveness >70 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 4.8 1.46
    100 7.2 2.20
    200 10.5 3.20
    400 15.4 4.70
    500 17.6 5.37
    600 19.5 5.95
    860 24.2 7.38
    1000 26.5 8.08

Return Loss :

  • 30-300 MHz >30dB
    300-600 MHz >29dB
    600-900 MHz >27dB
