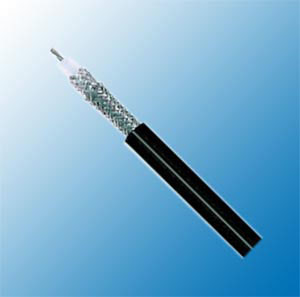

RG 223 RK

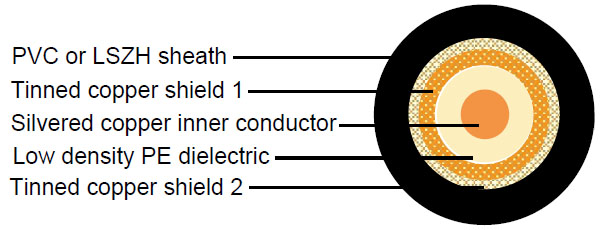

Construction :

  • Inner conductor Silver plated copper 0.9 mm
    Dielectric Low density PE Φ2.95 ± 0.10 mm
    Outer conductor(shield 1) Tinned copper 112 x 0.10 mm
    Shield coverage   85%
    Outer conductor(shield 2) Tinned copper 112 x 0.10 mm
    Shield coverage   80%
    Sheath PVC or LSZH Φ5.40 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 100 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 28 Ohm/Km
    Outer conductor resistance 11 Ohm/Km
    Operating temperature range -30 °C - +70 °C
    Copper weight 22.7 Kg/Km
    Cable weight (approx.) 46.3 Kg/Km
    Screening effectiveness >70 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 9.0 2.74
    100 13.0 3.96
    200 19.3 5.88
    400 28.1 8.57
    500 31.9 9.73
    600 35.3 10.76
    860 43.8 13.35
    1000 48.5 14.79

Return Loss :

  • 30-300 MHz >32dB
    300-600 MHz >28dB
    600-900 MHz >23dB
