M17/155-RG 58 (RG 58 C/U)

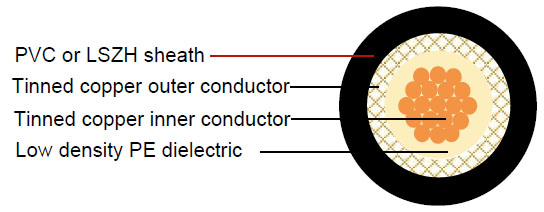

Construction :

  • Inner conductor Tinned copper 19 x 0.18 mm
    Dielectric Low density PE Φ2.95 ± 0.10 mm
    Outer conductor (shield) Tinned copper 112 x 0.13 mm
    Shield coverage   95%
    Sheath PVC or LSZH Φ5.00 ± 0.10 mm
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 100 pF/m
    Velocity of propagation 66%
    Insulation resistance >2000 Mohm.Km
    Inner conductor resistance 37.5 Ohm/Km
    Outer conductor resistance 16.5 Ohm/Km
    Test/Operatig Voltage(max) 5 KV/2.5 KV
    Operating temperature range -30 °C - +70 °C
    Copper Weight 18.7 Kg/Km
    Cable weight (approx.) 39.9 Kg/Km
    Screening effectiveness 100-900 MHz >55dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100ft)
    50 10.8 3.29
    100 16.0 4.88
    200 24.0 7.32
    400 37.7 11.49
    500 41.3 12.59
    600 49.7 15.15
    860 64.2 19.57
    1000 70.0 21.34

Return Loss :

  • 30-300 MHz >27dB
    300-600 MHz >23dB
    600-900 MHz >22dB
