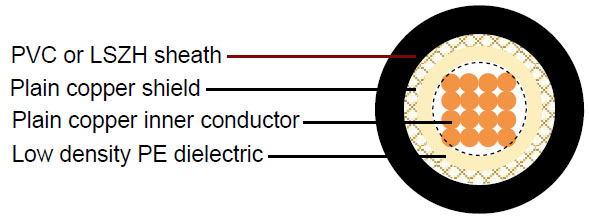

Construction :

• Inner conductor	Plain copper	16 x 0.18 mm
  Dielectric	Low density PE	Φ2.85 ± 0.10 mm
  Outer conductor (shield)	Plain copper	80 x 0.12 mm
  Shield coverage		79%
  Sheath	PVC or LSZH	Φ5.00 ± 0.10 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	100 pF/m
  Velocity of propagation	66%
  Insulation resistance	>2000 Mohm.Km
  Inner conductor resistance	44 Ohm/Km
  Outer conductor resistance	24 Ohm/Km
  Operating temperature range	-30 °C - +70 °C
  Copper weight	12.4 Kg/Km
  Cable weight (approx.)	34.4 Kg/Km
  Screening effectiveness	>50 dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100 ft)
  50	9.8	2.99
  100	14.1	4.30
  200	20.6	6.28
  400	30.4	9.27
  500	34.8	10.61
  600	38.7	11.80
  860	47.9	14.60
  1000	52.8	16.10

Return Loss :

• 30-300 MHz	>26dB
  300-600 MHz	>25dB
  600-900 MHz	>22dB
