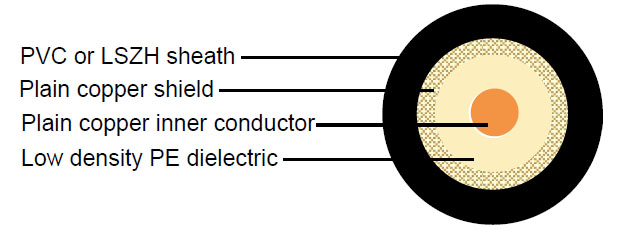

Construction :

• Inner conductor	Copper clad steel(CCS)	0.58 mm
  Dielectric	Low density PE	Φ3.70 ± 0.10 mm
  Outer conductor (shield)	Plain copper	120 x 0.10 mm
  Shield coverage		77%
  Sheath	PVC or LSZH	Φ6.15 ± 0.10 mm

•

Electrical & Mechanical Characteristics :

• Impedance	75±5 Ohm
  Nominal capacitance	67 pF/m
  Velocity of propagation	66%
  Insulation resistance	>2000 Mohm.Km
  Inner conductor resistance	158 Ohm/Km
  Outer conductor resistance	19.5 Ohm/Km
  Operating temperature range	-30 °C - +70 °C
  Copper weight	11.1 Kg/Km
  Cable weight (approx.)	45.7 Kg/Km
  Screening effectiveness	>50 dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ft)
  50	7.6	2.32
  100	11.1	3.38
  200	16.2	4.94
  400	23.2	7.07
  500	26.2	7.99
  600	29.3	8.93
  860	35.5	10.82
  1000	38.7	11.80

Return Loss :

• 30-300 MHz	>31dB
  300-600 MHz	>28dB
  600-900 MHz	>24dB
