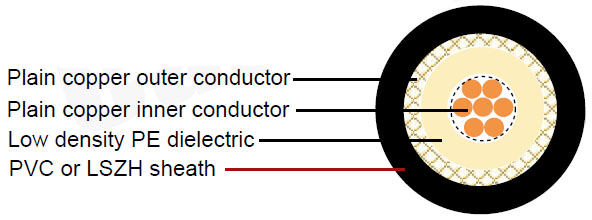

Construction :

• Inner conductor	Plain copper	7 x 0.72 mm
  Dielectric	Low density PE	Φ7.25 ± 0.18 mm
  Outer conductor (shield)	Plain copper	192 x 0.2 mm
  Shield coverage		98%
  Sheath	PVC or LSZH	Φ10.4 ± 0.18 mm

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	97 pF/m
  Velocity of propagation	66%
  Insulation resistance	>2000 Mohm.Km
  Inner conductor resistance	6.2 Ohm/Km
  Outer conductor resistance	4.0 Ohm/Km
  Operating temperature range	-30 °C - +70 °C
  Test/Operatig Voltage(max)	10KV/5KV
  Copper Weight	84.3 Kg/Km
  Cable weight (approx.)	171.5 Kg/Km
  Screening effectiveness	100-900 MHz	>55dB

Attenuation :

• Frequency(MHz)	Attenuation (dB/100 m)	Attenuation (dB/100ift)
  50	4.5	1.37
  100	6.7	2.04
  200	9.9	3.02
  400	14.3	4.36
  500	16.1	4.91
  600	17.8	5.43
  860	22.1	6.74
  1000	24.3	7.41

Return Loss :

• 30-300 MHz	>31dB
  300-600 MHz	>28dB
  600-900 MHz	>27dB
