SLS 64955

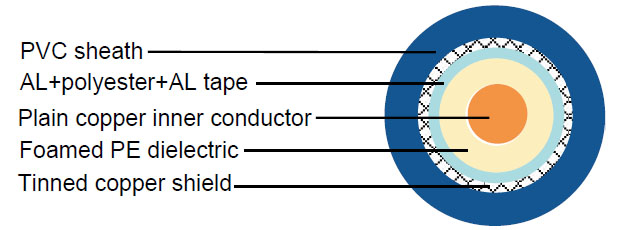

Construction :

  • Inner conductor Plain copper 1.40 mm
    Dielectric Foam PE Φ6.4 ± 0.10 mm
    Outer conductor (shield 1) Aluminium + polyester + Aluminium tape
    Shield coverage   100%
    Outer conductor (shield 2) Tinned copper 192 x 0.15 mm
    Shield coverage   95%
    Sheath PVC Φ9.20 ± 0.10 mm
  •
  •

Electrical & Mechanical Characteristics :

  • Impedance 75±5 Ohm
    Nominal capacitance 53 pF/m
    Velocity of propagation 84%
    Insulation resistance >5000 Mohm.Km
    Inner conductor resistance 11.5 Ohm/Km
    Outer conductor resistance 5.5 Ohm/Km
    Operating temperature range -25 °C - +80 °C
    Copper weight 49.2 Kg/Km
    Cable weight (approx.) 109.2 Kg/Km
    Screening effectiveness >84 dB

Attenuation :

  • Frequency(MHz) Attenuation (dB/100 m) Attenuation (dB/100 ft)
    50 3.4 1.04
    200 7.4 2.26
    470 10.7 3.26
    860 14.8 4.51
    1000 16.3 4.97
    1350 19.4 5.91
    1500 20.8 6.34
    1750 22.5 6.86
    2150 25.3 7.71
    2400 27.0 8.23

Return Loss :

  • 30-470 MHz >29dB
    470-860 MHz >27dB
    860-2400 MHz >23dB
