1.13 mm Mini-Coax
![](../../images/line.jpg)

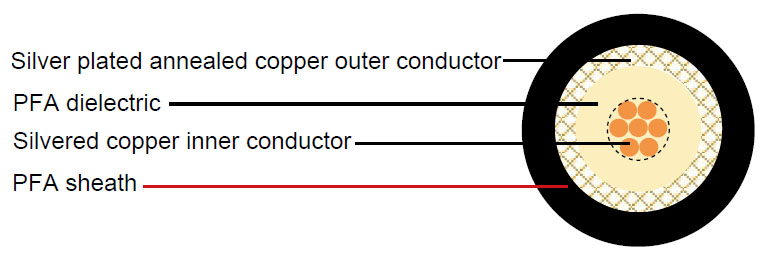

Construction :
-
Inner conductor Silver plated annealed copper 7 x 0.08 mm Dielectric PFA Φ0.68 mm Outer conductor Silver plated annealed copper 0.05 mm Shield coverage 95% Sheath PFA Φ1.13 mm -
Electrical & Mechanical Characteristics :
-
Impedance 50±3 Ohm Nominal capacitance 95.6 pF/m Velocity of propagation 70% Insulation resistance - Mohm.Km Inner conductor resistance - Ohm/Km Outer conductor resistance - Ohm/Km Operating temperature range -55°C - +180 °C Test insulation voltage 1000V
Attenuation :
-
Frequency (GHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft) 1000 230 70.1 2000 310 94.5 3000 390 118.9 4000 460 140.2 5000 510 155.4 6000 580 176.8
