1.37 mm Mini-Coax
![](../../images/line.jpg)

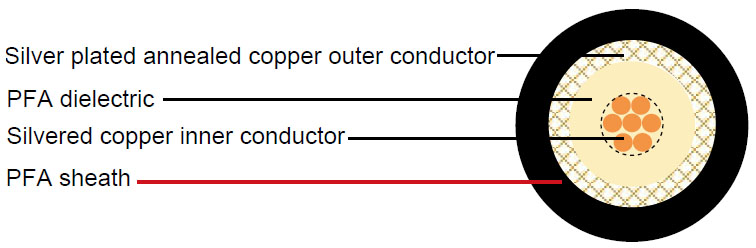

Construction :
-
Inner conductor Silver plated annealed copper 7 x 0.102 mm Dielectric PFA Φ0.89 mm Outer conductor Silver plated annealed copper 0.05 mm Shield coverage 95% Sheath PFA Φ1.37 mm -
Electrical & Mechanical Characteristics :
-
Impedance 50±3 Ohm Nominal capacitance 96 pF/m Velocity of propagation 70% Insulation resistance - Mohm.Km Inner conductor resistance - Ohm/Km Outer conductor resistance - Ohm/Km Operating temperature range -55°C - +180 °C Test insulation voltage 1KV
Attenuation :
-
Frequency (MHz) Attenuation (dB/100 m) Max. Attenuation(dB/100ft) 1000 160 48.8 2000 230 70.1 3000 290 88.4 4000 340 103.6 5000 400 121.9 6000 430 131.1
