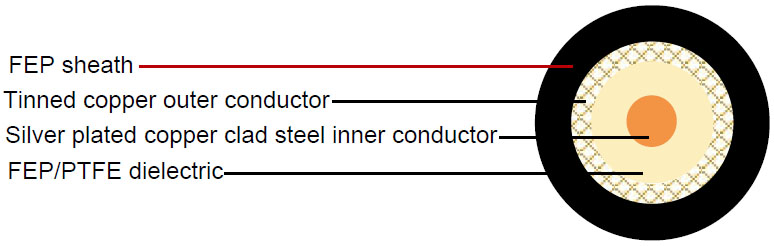

Construction :

• Inner conductor	Silver plated copper clad steel	0.10 mm
  Dielectric	FEP/PTFE	Φ0.57 mm
  Outer conductor	Tinned copper braid	Φ0.77 mm
  Sheath	FEP	Φ1.22 mm

•

Electrical & Mechanical Characteristics :

• Impedance	75±5 Ohm
  Nominal capacitance	72.6 pF/m
  Velocity of propagation	70%
  Insulation resistance	- Mohm.Km
  Inner conductor resistance	- Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Operating temperature range	-55°C - +200 °C
  Cable weight (approx.)	3kg/km

Attenuation :

• Frequency (MHz)	Attenuation (dB/100 m)	Max. Attenuation(dB/100ft)
  10	36	11.0
  100	70	21.3
  400	135	41.2
  1000	220	67.1
  2000	320	97.6
  3000	390	118.9
