SF047

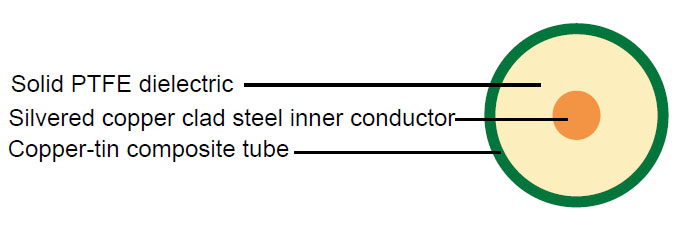

Construction :

  • Inner conductor Silver plated copper clad steel Φ0.31 mm
    Dielectric Solid PTFE Φ0.94 ± 0.10 mm
    Outer conductor Tinned copper Φ1.19 ± 0.10 mm
    Shield coverage   100%
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 95 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Max.operating voltage 1.5KV
    Operating temperature range -65°C - +165 °C
    Min.bending radius 4 mm

Attenuation :

  • Frequency(GHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    0.5 81 24.7
    1 116 35.4
    5 269 82.0
    10 392 119.5
    20 577 175.9
