SF086 (Flexible RG 405)

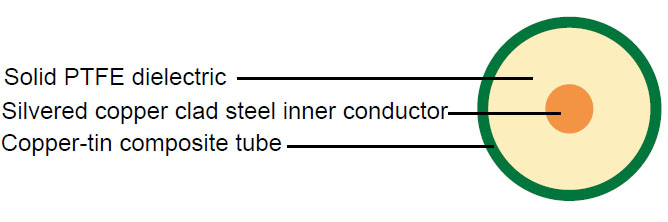

Construction :

  • Inner conductor Silver plated copper clad steel Φ0.53 mm
    Dielectric Solid PTFE Φ1.65 ± 0.10 mm
    Outer conductor Tinned copper Φ2.10 ± 0.10 mm
    Shield coverage   100%
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 95 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Max.operating voltage 1.5KV
    Operating temperature range -65°C - +165 °C
    Min.bending radius 6 mm

Attenuation :

  • Frequency(GHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    0.5 46 14.0
    1 67 20.4
    5 160 48.8
    10 239 72.8
    20 361 110.0
