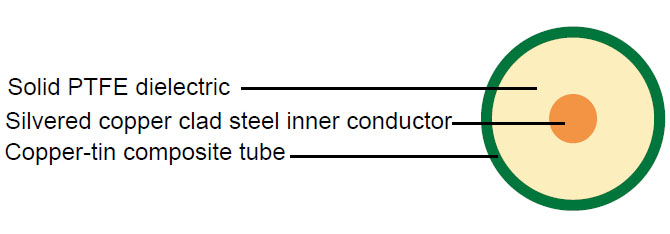

Construction :

• Inner conductor	Silver plated copper clad steel	Φ0.94 mm
  Dielectric	Solid PTFE	Φ2.95 ± 0.10 mm
  Outer conductor	Tinned copper	Φ3.58 ± 0.10 mm
  Shield coverage		100%

•

Electrical & Mechanical Characteristics :

• Impedance	50±3 Ohm
  Nominal capacitance	92 pF/m
  Velocity of propagation	-
  Insulation resistance	- Mohm.Km
  Inner conductor resistance	- Ohm/Km
  Outer conductor resistance	- Ohm/Km
  Max.operating voltage	1.9KV
  Operating temperature range	-65°C - +165 °C
  Min.bending radius	8 mm

Attenuation :

• Frequency(GHz)	Max. Attenuation(dB/100m)	Max. Attenuation(dB/100ft)
  0.5	27	8.3
  1	39	11.9
  5	99	30.2
  10	152	46.3
  20	239	72.8
