SR034

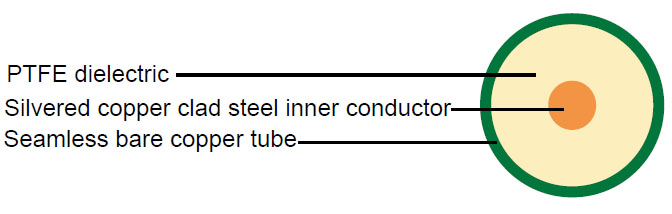

Construction :

  • Inner conductor Silver plated copper clad steel(SCCS) Φ0.20 mm
    Dielectric PTFE Φ0.66 ± 0.1 mm
    Outer conductor type1: Seamless bare copper tube Φ0.86 ± 0.1 mm
    type2: Seamless copper tube, tin plated(TP)
    type3: Seamless copper tube, silver plated(SP)
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 95 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -55°C - +125 °C
    Outer conductor integrity temperature 175°C
    Min.bending radius 3.0 mm

Attenuation :

  • Frequency(MHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    500 112 34.1
    1000 159 48.5
    5000 362 110.3
    10000 520 158.5
    20000 752 229.2
