SR086/M17

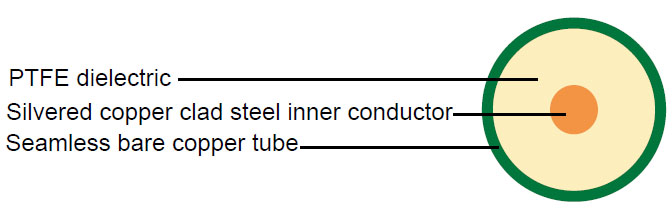

Construction :

  • Inner conductor Silver plated copper clad steel Φ0.51 mm
    Dielectric PTFE Φ1.67 ± 0.1 mm
    Outer conductor type1: Seamless bare copper tube Φ2.20 ± 0.1 mm
    type2: Seamless copper tube, tin plated(TP)
    type3: Seamless copper tube, Silver plated(SP)
  •

Electrical & Mechanical Characteristics :

  • Impedance 50±3 Ohm
    Nominal capacitance 95 pF/m
    Velocity of propagation -
    Insulation resistance - Mohm.Km
    Inner conductor resistance - Ohm/Km
    Outer conductor resistance - Ohm/Km
    Operating temperature range -55°C - +125 °C
    Outer conductor integrity temperature 175°C
    Min.bending radius 7.63 mm

Attenuation :

  • Frequency(MHz) Max. Attenuation(dB/100m) Max. Attenuation(dB/100ft)
    500 45 13.7
    1000 64 19.5
    5000 151 46.0
    10000 222 67.7
    20000 329 100.3
